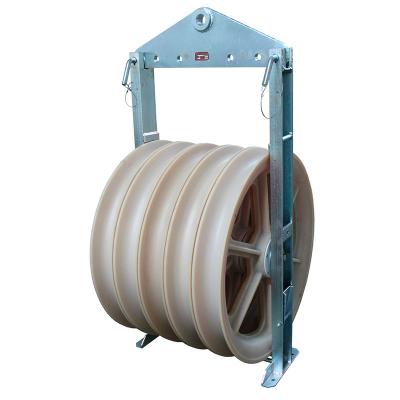

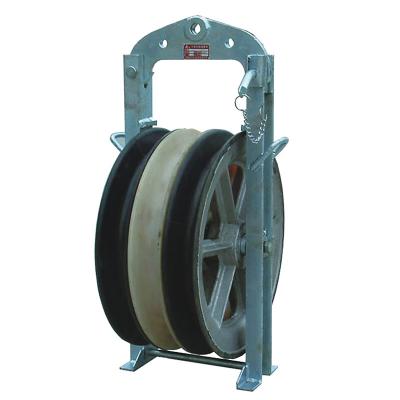

1160mm Large diameter stringing block
1160mm Large diameter stringing block
Notes
Maximum suitable conductor ACSR1250
Dimension of block for conductor ( outside diameter× root diameter × sheave width) Φ1160×Φ1000×150(mm).
Dimension of block for steel wire rope ( outside diameter× root diameter × sheave width) Φ1160×Φ1000×130(mm).
The rubber lined MC nylon sheave are half lined.
